A scoreboard people can actually see.

Tennink is an e-paper tennis scoreboard that mounts on the net post. Big high-contrast digits stay readable in direct sun, and the score can be updated from physical buttons, a phone app, or a watch.

Tennink scoreboard mounted on a net post during a match at Buckhorn Springs

The V1 prototype mounted on court at Buckhorn Springs Racquet & Pool Club.

Project

Built for real courts

Most park and club courts have no visible score. Flip cards are small, blow over, or never get updated. Tennink puts a big, always-on number where both sides can read it, with no subscriptions and nothing extra to do mid-match.

Readable

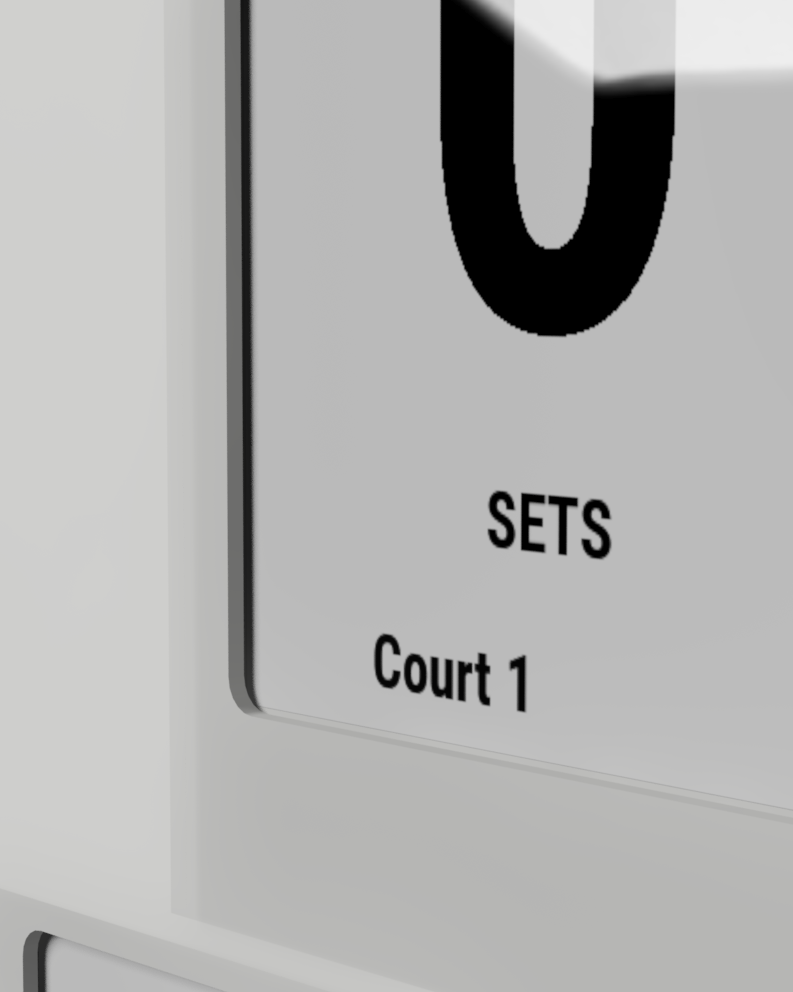

Three 7.5-inch e-paper panels with high-contrast digits, readable from the baseline even in full sun.

Simple to run

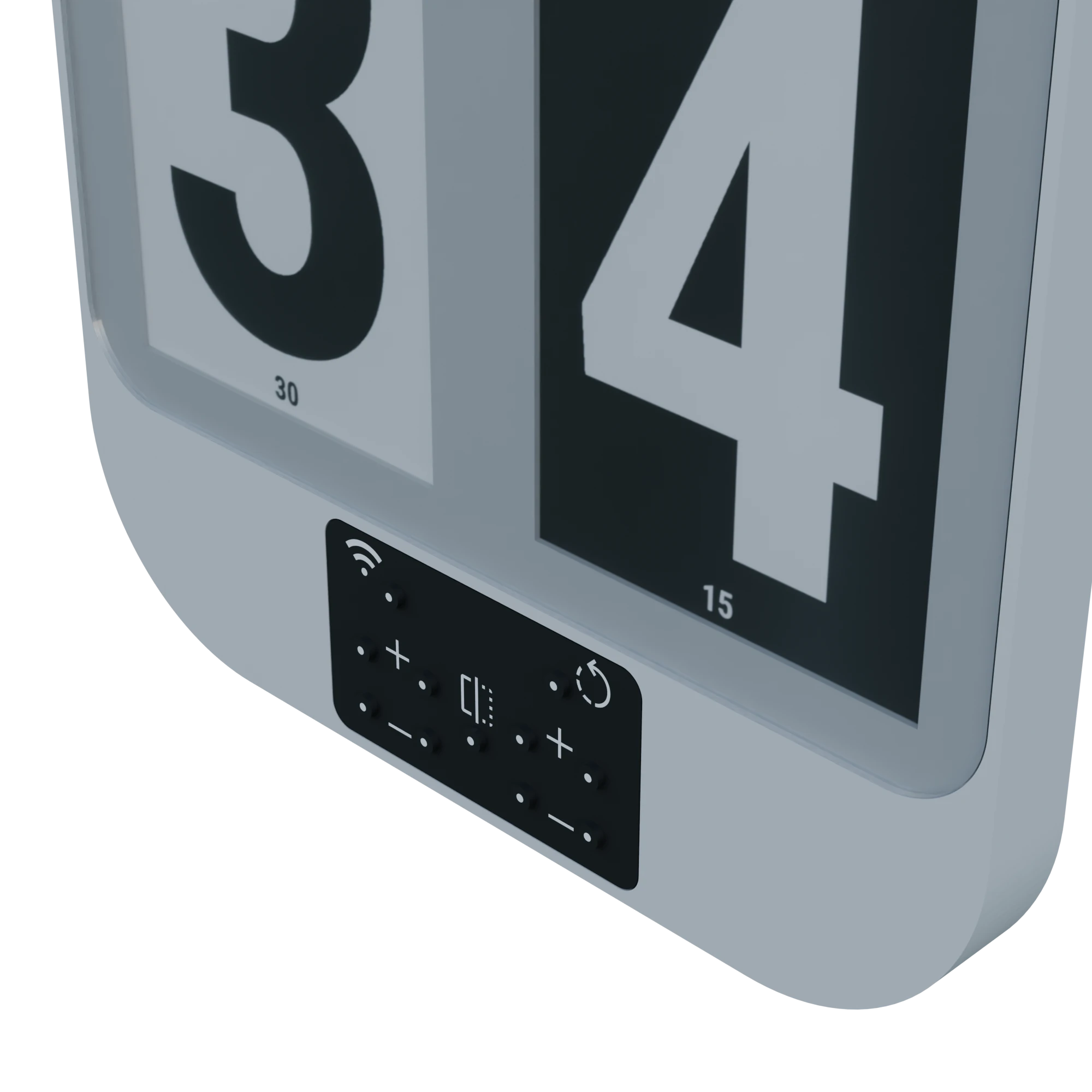

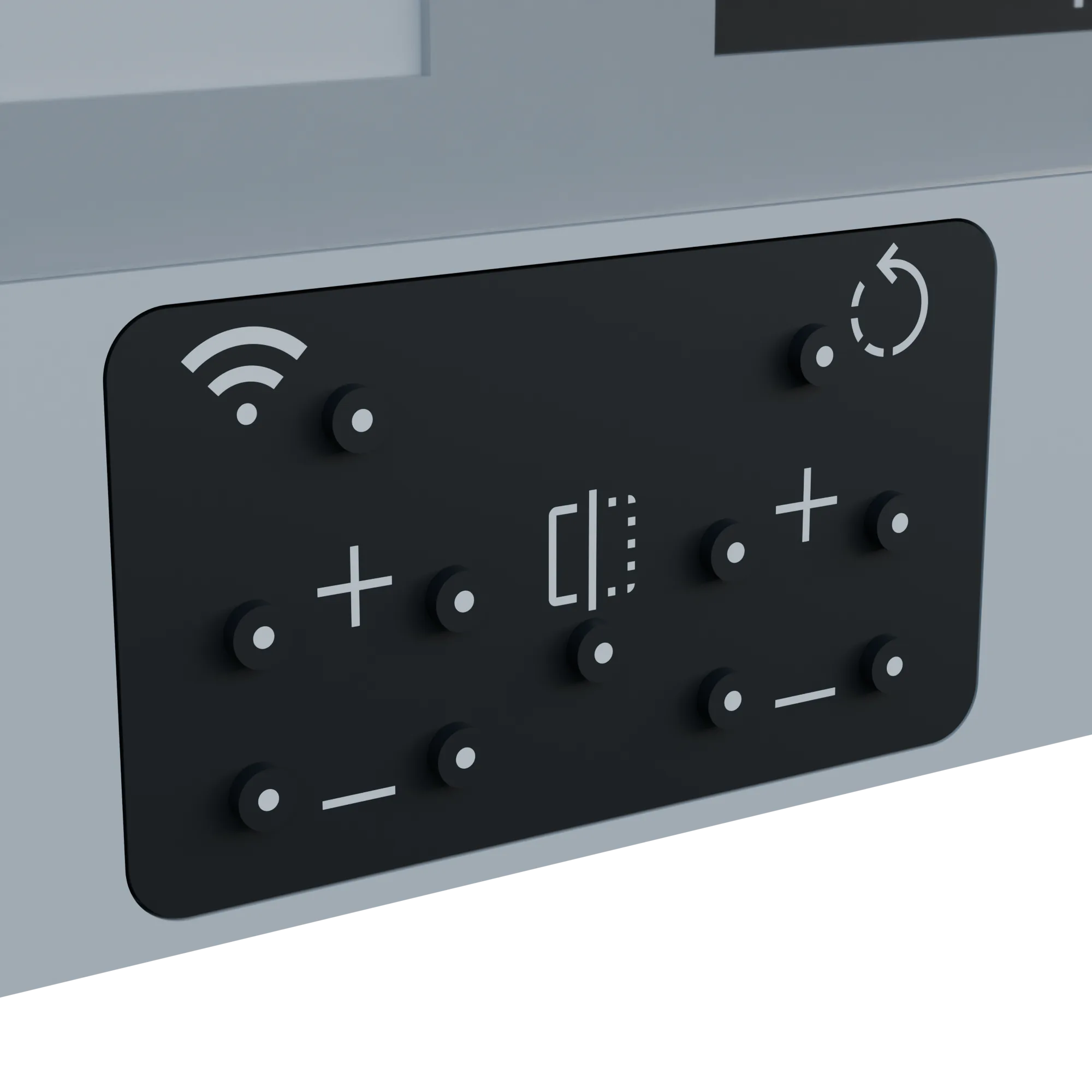

Physical buttons on the unit, plus an Android phone app and a Wear OS watch app over Bluetooth.

Made for the court

Net-post mount with no tools, a rechargeable battery, and an enclosure refined through three CAD revisions.

Build log

From breadboard to third revision

  1. 1Driving e-paper displays

    Before any enclosure existed, the first milestone was getting a single 7.5-inch e-paper display updating from a microcontroller. Then came getting all three updating together, which was one of the hardest parts of V1: timing the driver boards and pushing full-screen refreshes reliably.

    Breadboard with a microcontroller wired to a large e-paper display showing its first update

    Early test footage: driving the e-paper panels from the microcontroller.

  2. 2V1 enclosure in CAD

    The first CAD model was a big boxy frame. It taught how much space ribbon cables, driver boards, and standoffs really need.

    V1 CAD model of the scoreboard enclosure
  3. 3Printing and assembling V1

    The frame was printed on a Creality printer and test-fit piece by piece. Reprinting parts that didn't fit was routine, and each reprint tightened up the clearances around the displays and boards.

    Assembling the 3D-printed scoreboard frame at a desk next to the 3D printer
  4. 4Wiring the driver boards

    Each e-paper panel needs its own driver board, so three of them were wired to a single controller along with a battery. Everything was labeled so the unit could be debugged on court.

    Back of the prototype showing e-paper driver boards, ribbon cables, and battery
  5. 5First complete prototype

    V1 worked end to end. It was flimsy, and the PLA frame warped after time in the sun, but a working scoreboard assembled from parts proved the concept.

    The finished first prototype displaying match score
  6. 6V2 on court with watch control

    V2 focused on refresh speed, a rounded design, and wireless connectivity, then went back on court at Buckhorn Springs, controlled from the watch over Bluetooth. This clip shows connecting from the wrist and scoring a game, with the board following along from 0-0 to 1-0.

    V2 CAD inside view showing board mounts and PCB placement
  7. 7V3 redesign: thinner and sun-ready

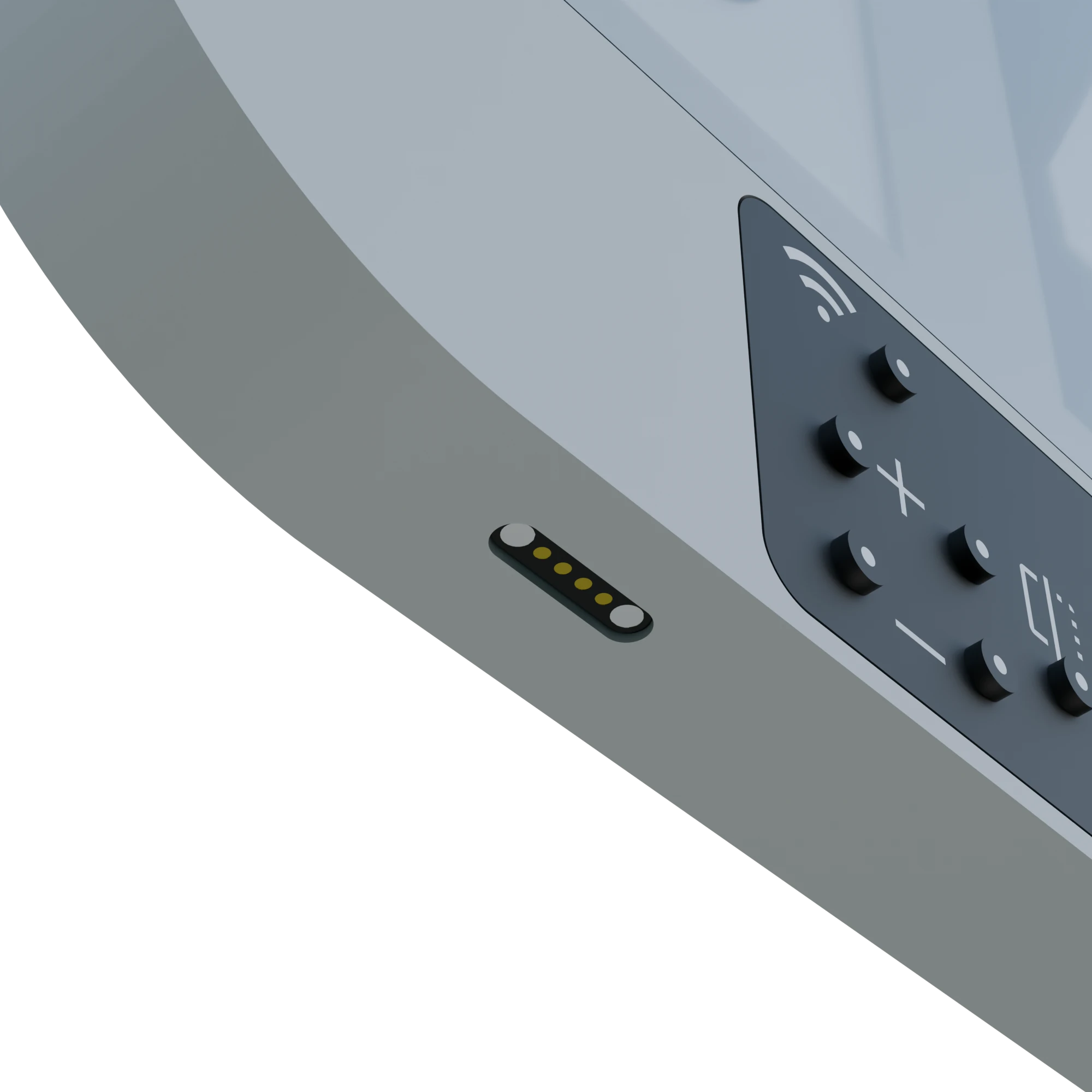

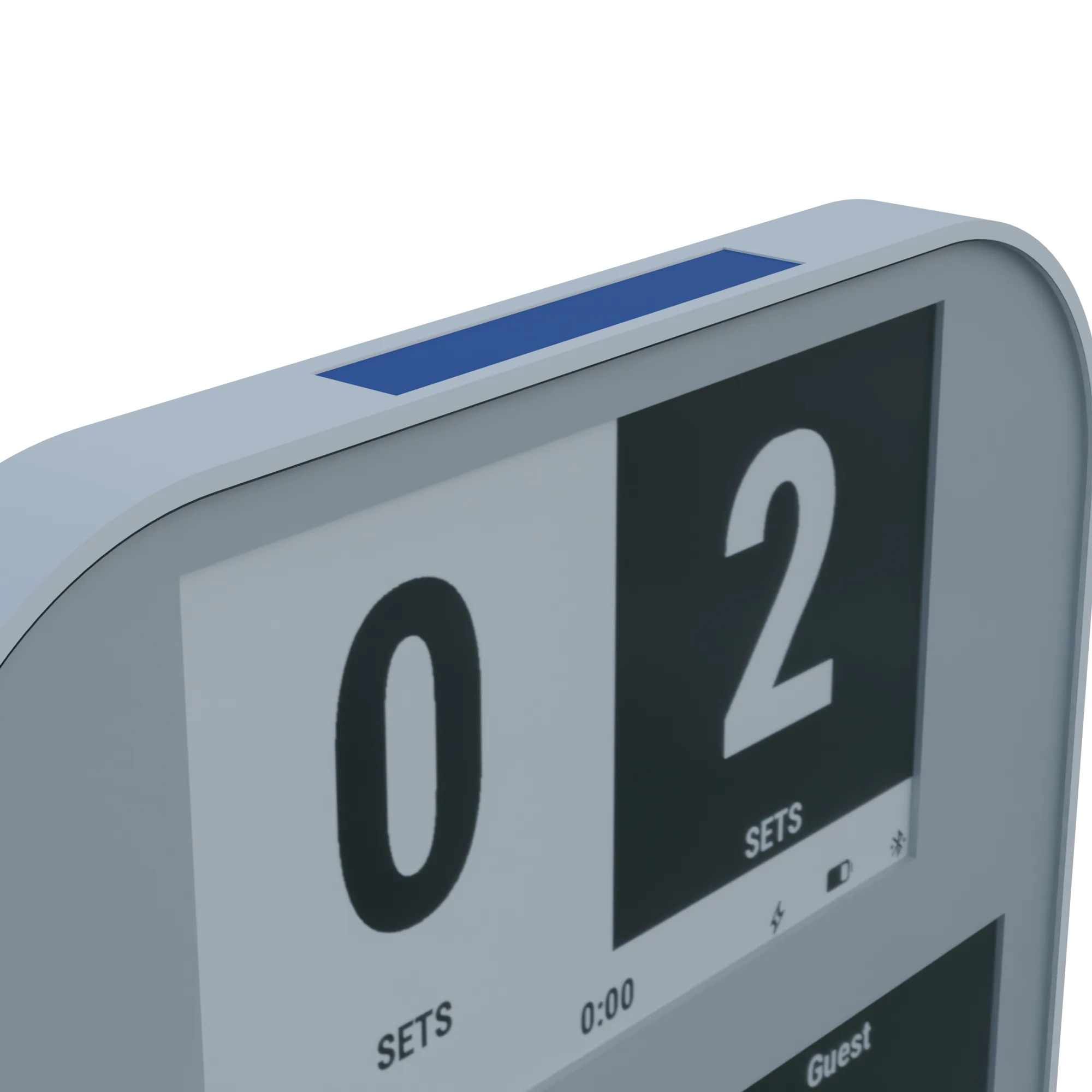

    In-progress, V3 focuses on polish, with a rounded, thinner design that integrates a solar panel. It also adds plexiglass protection to the displays, and SLS nylon further protects from impacts. A Gore-tex vent, magnetic charging, waterproofing, and faster refreshing are all designed and waiting for parts to come in.

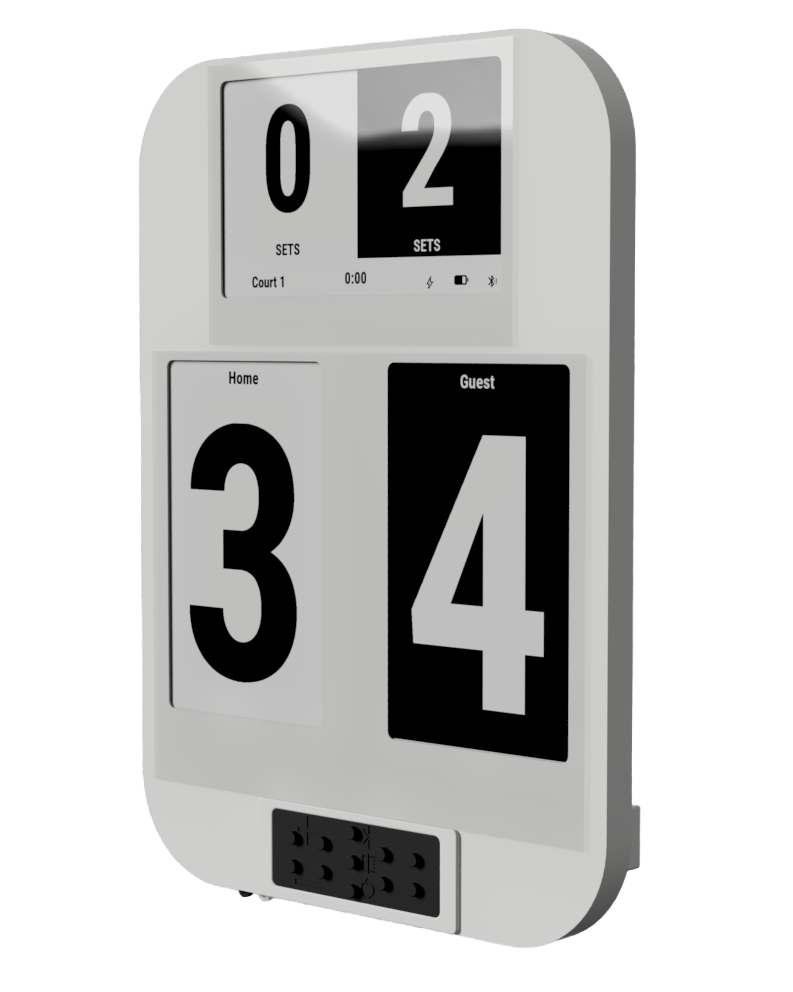

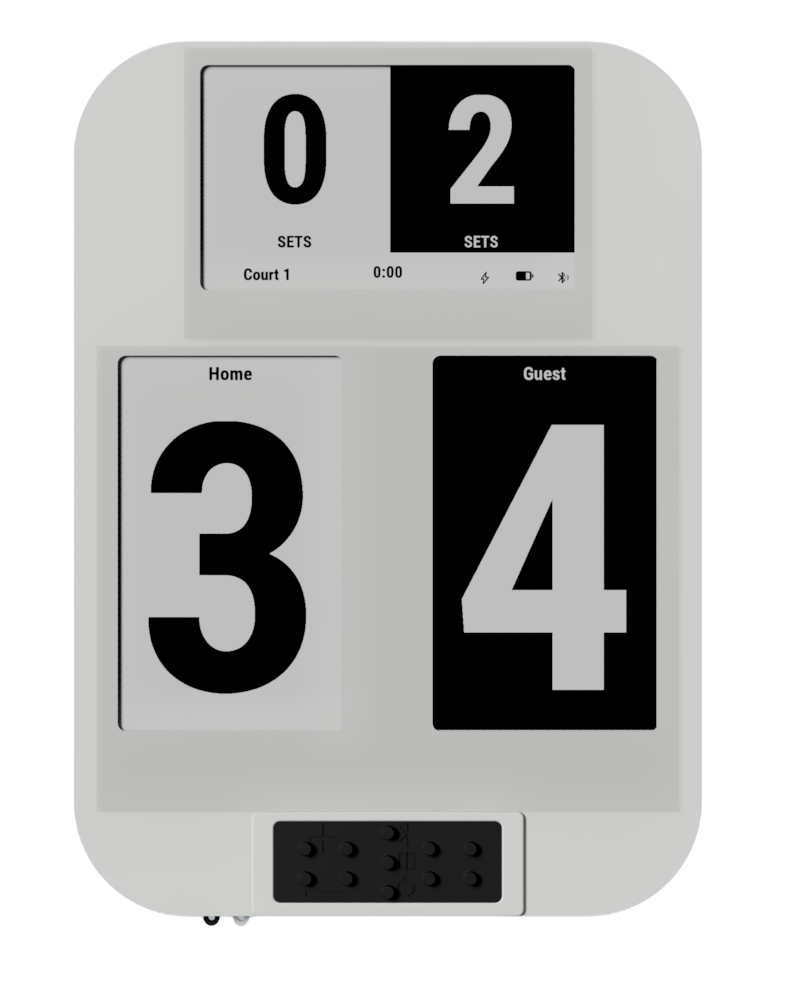

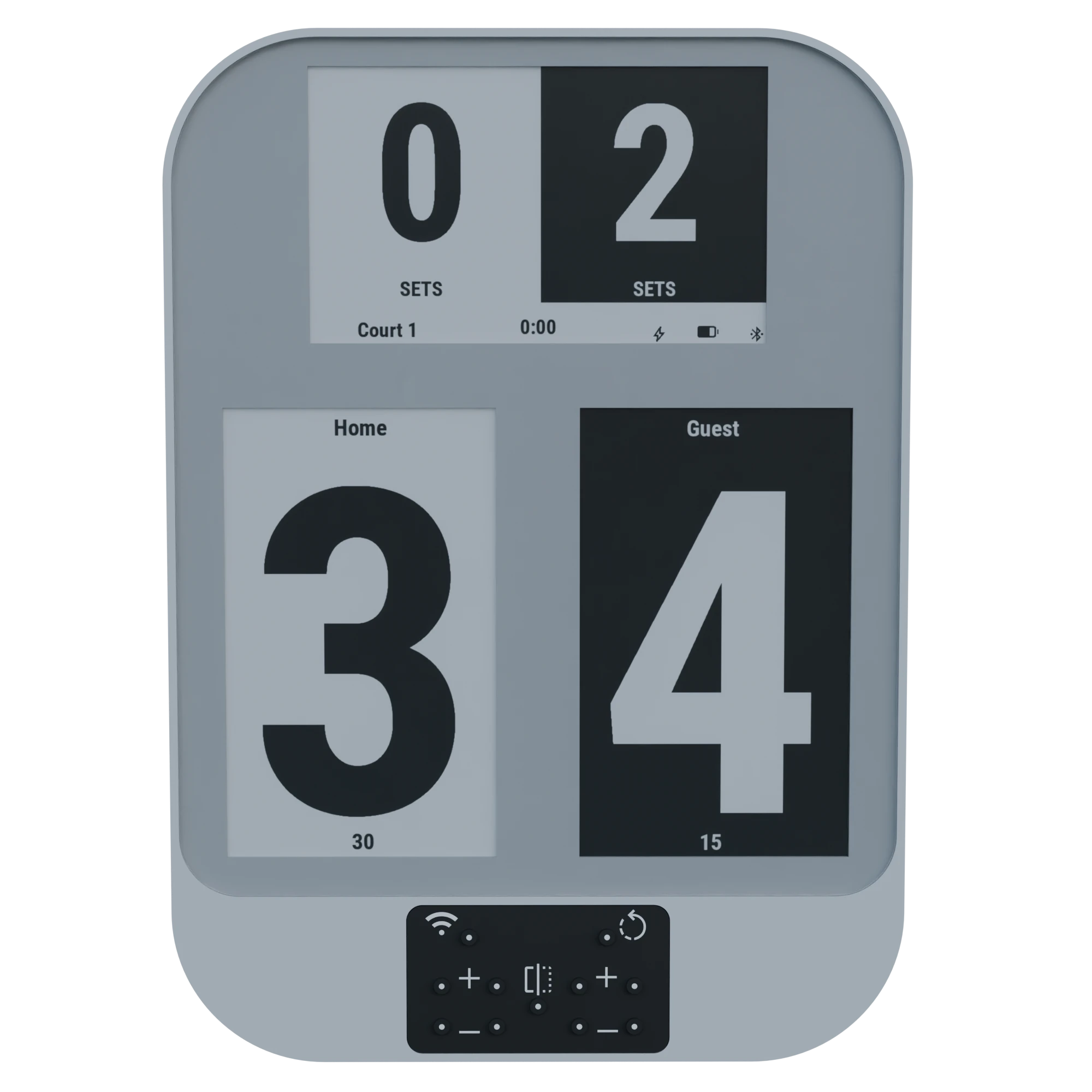

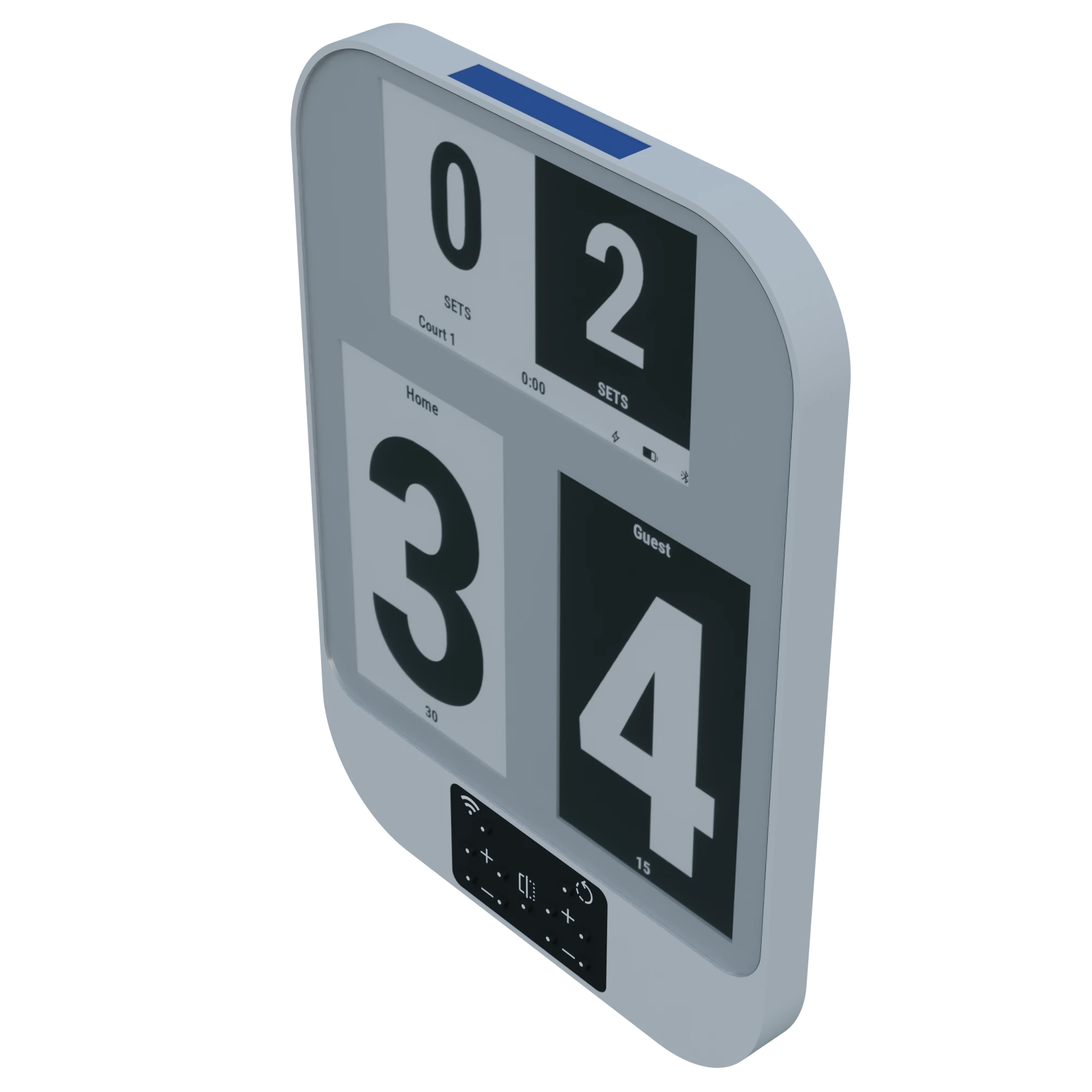

    V3 CAD model front view with slimmer rounded enclosure V3 CAD model inside view showing PCB placement and battery slot

Software

Phone and watch control

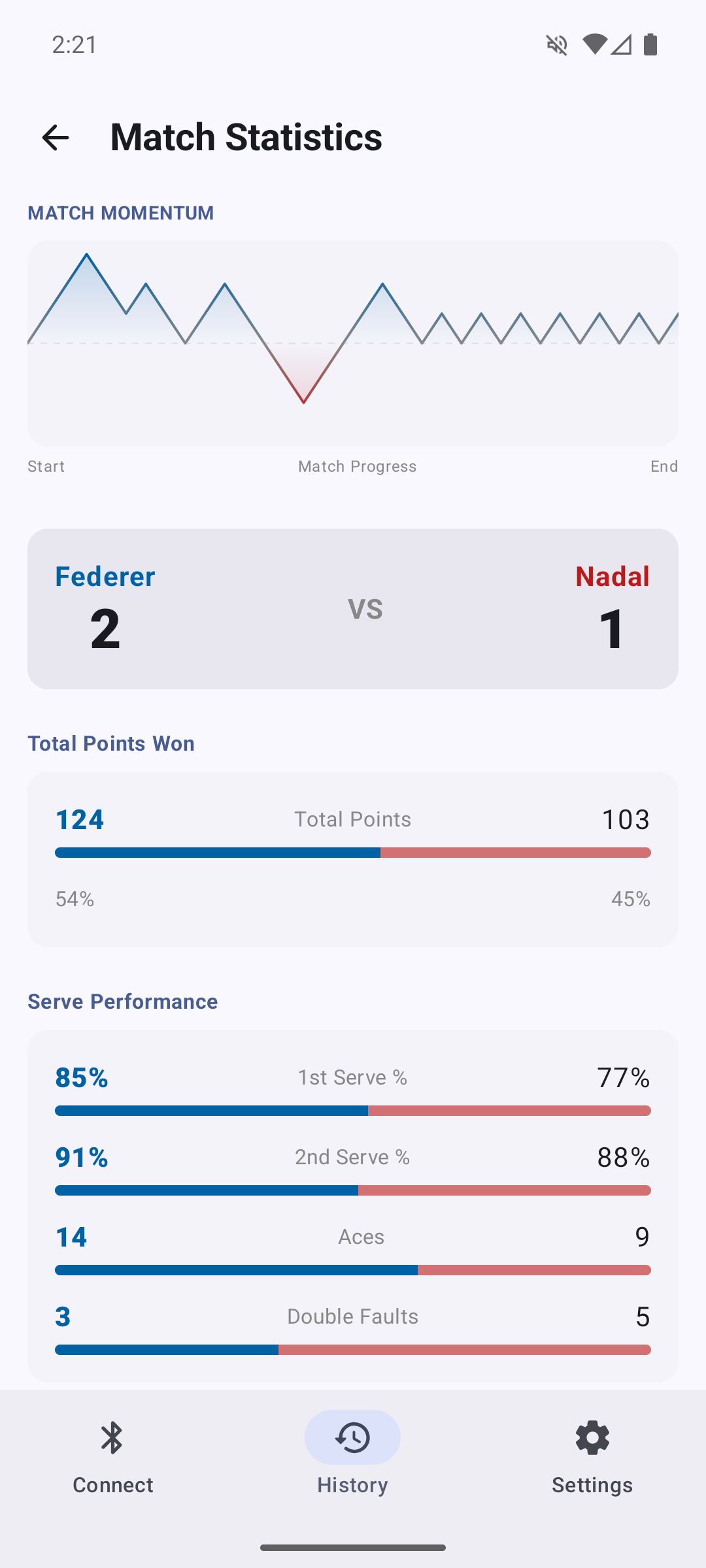

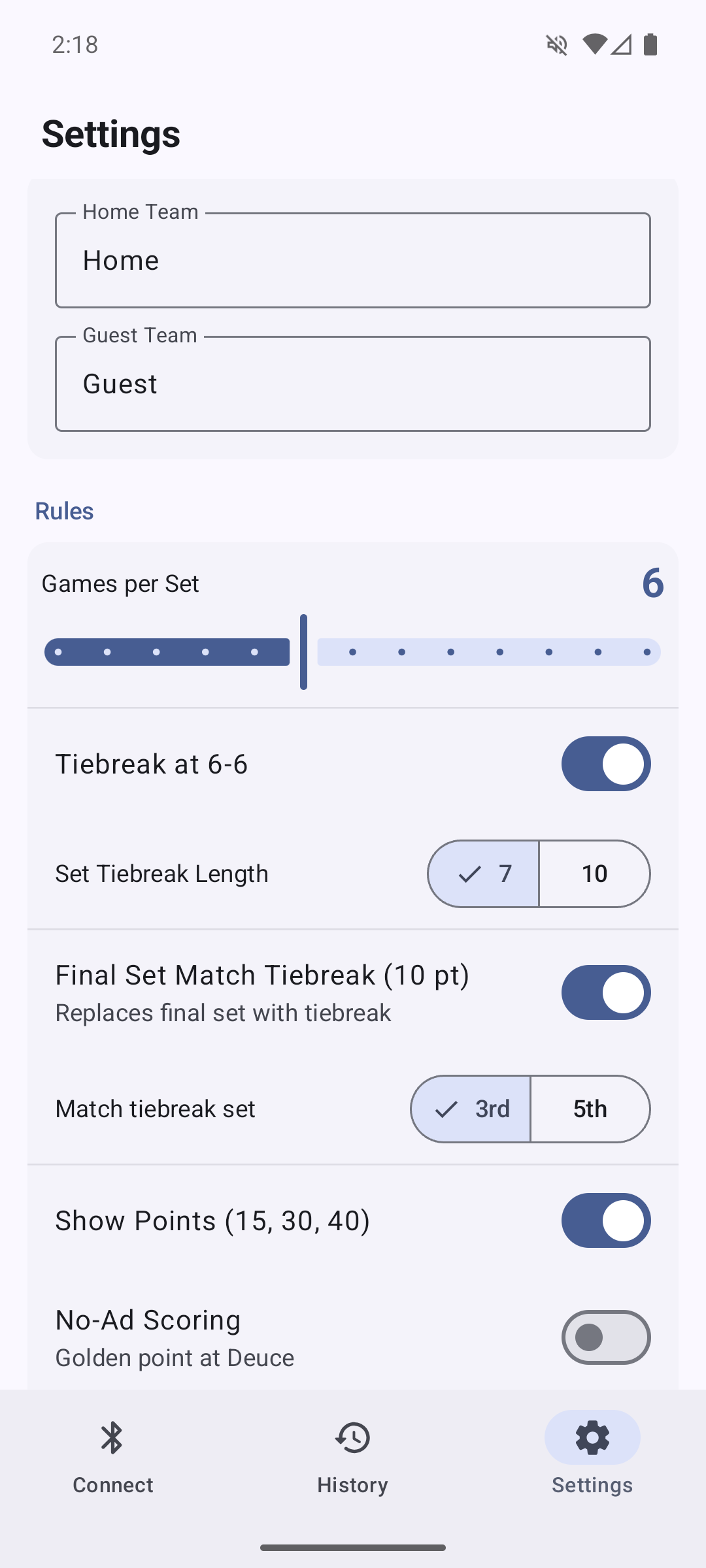

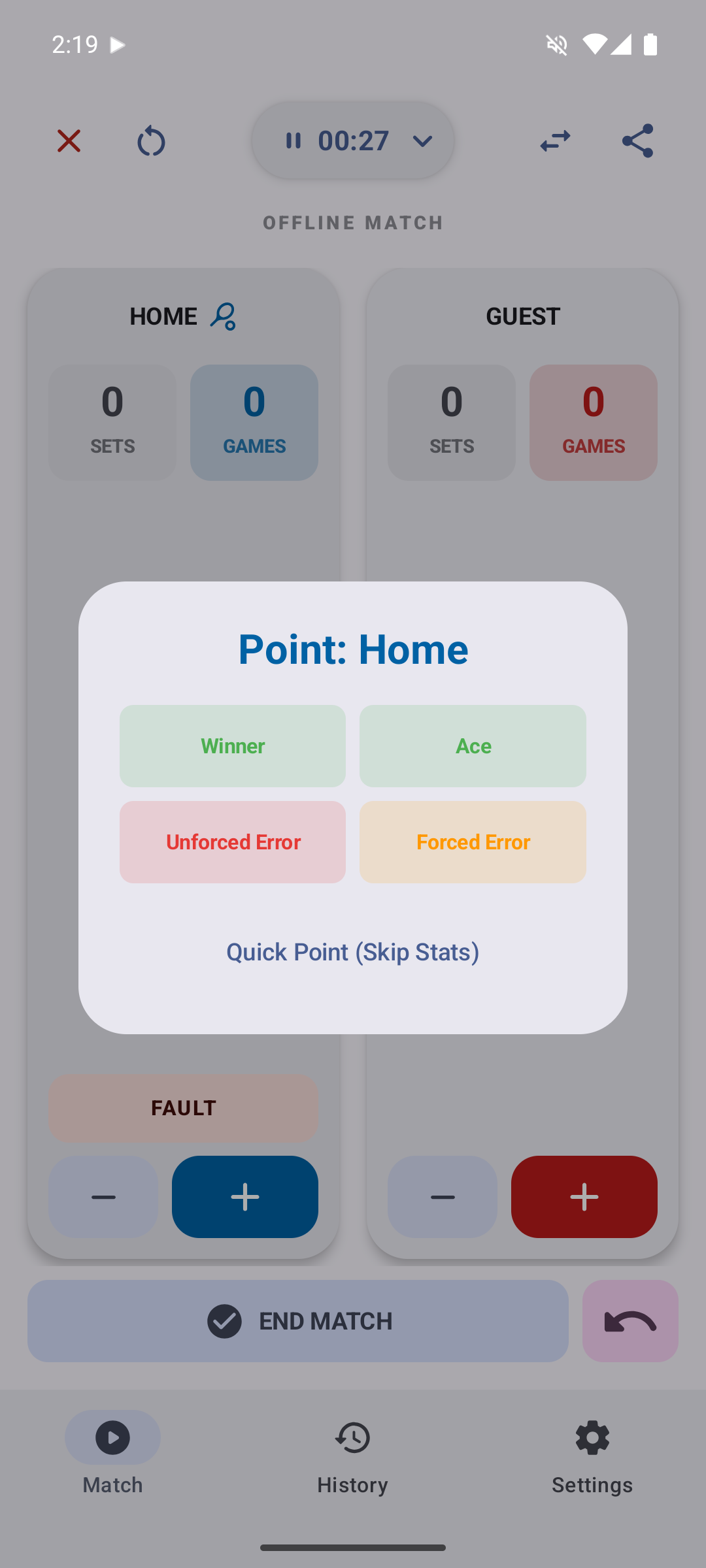

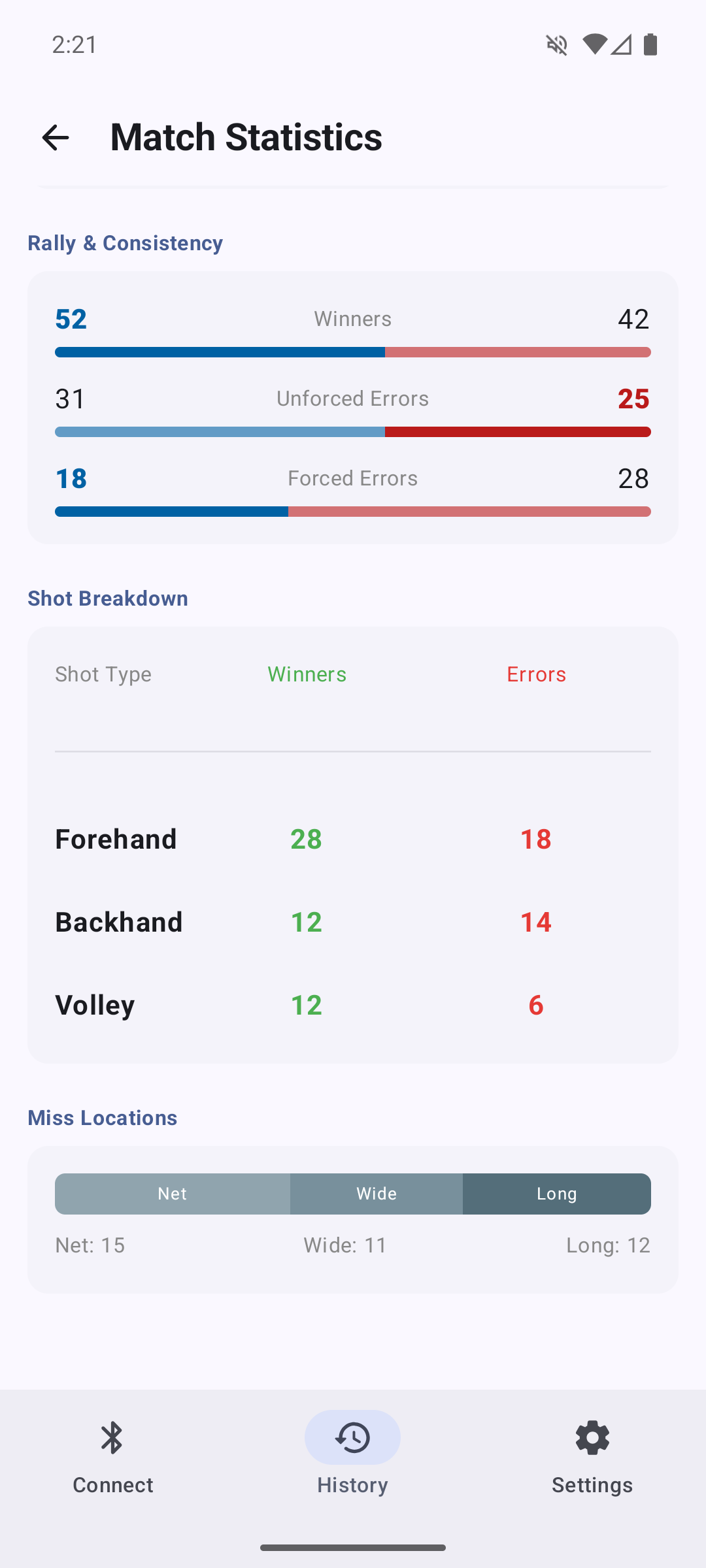

An Android app and a Wear OS watch app connect over Bluetooth, so players can update the score without walking to the net. Both track sets, games, and points, and the phone app keeps a match history.

Tennink phone app match screen showing Home 40 and Guest 15
Phone app

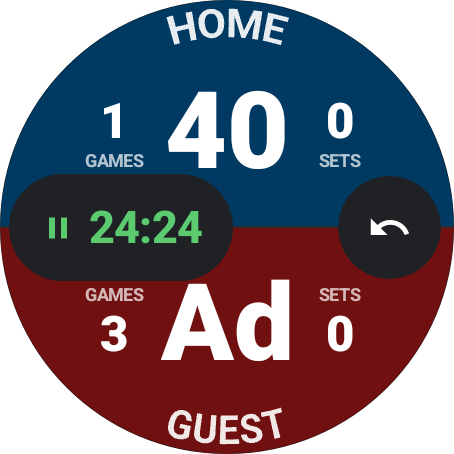

Tennink watch app on a round Wear OS face showing Home 40 and Guest Ad
Watch app

Field testing

Tested in real matches

Tennink was tested at Buckhorn Springs during regular club play, mounted on the net post where both sides could read it.

A Buckhorn Springs match played with Tennink on the net post.

Two players mid-match with the Tennink scoreboard on the net post

Specs

Hardware at a glance

DisplayThree 7.5-inch e-paper panels
ControllerNordic nRF52840 over Bluetooth
ControlsPhysical buttons, phone app, watch app
PowerRechargeable battery
MountNet post, tool-free
Enclosure3D-printed, PLA->PETG->Nylon
